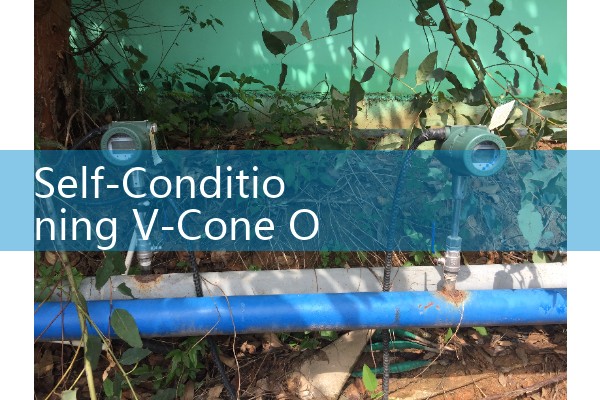

Self-Conditioning V-Cone Offshore Flow Meter for High-Turndown Natural Gas Probes
Quick Answer: A self-conditioning V-cone offshore flow meter measures high pressure natural gas with only 0 to 2 diameters of upstream straight pipe. High-turndown natural gas probes handle fuel gas, gas lift, flare gas, and allocation flow across a wide range. Silver Automation Instruments supplies DN15 to DN600 meter bodies with ASME Class 600 to 2500 flanges and NACE compliant wetted parts.
Why Self-Conditioning Matters on an Offshore Platform
Offshore skids do not have space for long straight runs. A standard orifice plate often needs 20D to 40D upstream to recover a clean velocity profile. That length adds weight, deck area, and fabrication cost. A self-conditioning V-cone offshore flow meter uses a cone in the pipe center. The cone reshapes the flow profile and removes swirl from elbows or valves. In practice, the meter works with 0 to 2 D upstream and 0 to 1 D downstream. This saves several meters of pipe on a fuel gas skid. We have seen this on customer sites in Malaysia and Vietnam where platform space is very tight.
High-Turndown Natural Gas Probes in Offshore Service
Offshore gas flow changes fast. Fuel gas demand tracks gas turbine load. Flare gas may sit near zero for days and then peak during a shutdown. A V-cone meter with a single differential pressure transmitter holds a practical turndown of 10:1. A dual transmitter setup or a high range model extends this to 15:1. That means one high-turndown natural gas probe can cover startup, normal, and peak flow without removing the element. Last year a customer in Vietnam replaced two parallel orifice runs with one V-cone body. The new meter cut bypass piping and one flow computer channel.
Offshore Natural Gas Conditions and Wetted Materials
Offshore gas can be wet, sour, and high pressure. The meter body needs the right metal and seal system. Silver Instruments selects 316L, duplex stainless steel, super duplex, or Inconel 625 based on gas composition and chloride level. For sour gas service, we ask for NACE MR0175 and ISO 15156 compliance. For pressures above 1500 lb, duplex or super duplex bodies with Inconel cone elements are common. Typical sizes run from DN15 to DN600. Flange ratings include ASME Class 600, 900, 1500, and 2500. Standard temperature limits for natural gas service are -40 to 200 °C. We add PT100 temperature input and absolute or gauge pressure input for compensated flow in kg/h or Sm³/h.
Accuracy, Repeatability, and Outputs
We quote gas flow accuracy from ±0.5% of rate for a calibrated V-cone meter. Repeatability is ±0.1% or better. For high-turndown natural gas probes, the transmitter span matters as much as the cone geometry. We often supply a multivariable transmitter with 4-20 mA HART output for flow, pressure, and temperature. Modbus RTU is available as an option. The HART signal works for calibration, health checks, and diagnostics. For offshore installations, flameproof or intrinsically safe transmitters are usually required. We can supply ATEX Zone 1 or IECEx Ex d and Ex i configurations. The signal can feed a
Installation on FPSO and Platform Piping
Weight and fitting space control the layout. The self-conditioning V-cone meter mounts between existing flanges in a short spool section. No flow straightener is required under normal swirl conditions. If the meter sees heavy pulsation from reciprocating compressors, move it slightly downstream or add a dampening element. A gas processing plant in Malaysia installed a V-cone on a DN150 fuel gas line with only 1.5 D of upstream straight pipe. The meter has held stable readings across a 12:1 turndown for two years. That saved a separate straight run skid and about 1.2 tonnes of pipe.
Typical Applications for Offshore Natural Gas Probes
These meters fit fuel gas lines to gas turbines, gas lift injection, flare gas headers, sales gas allocation, and compressor suction or discharge. For fuel gas, turndown matters because turbine load changes. For gas lift, the meter must handle high pressure and dirty gas with wax or condensate carryover. For flare, the meter should stay stable at very low flow. A self-conditioning V-cone offshore flow meter has no moving parts and lower upstream pipe requirements than an orifice plate. Maintenance is limited to transmitter calibration and periodic cone inspection.
How to Specify a Silver Instruments V-Cone Meter
Do not send only pipe size and flow range. Gas density, operating pressure, temperature, molecular weight, and turndown decide the beta ratio and transmitter span. Here is the minimum data set for a quote: gas composition or molecular weight, operating pressure in bar, operating temperature in °C, pipe size in DN, minimum and maximum flow in Sm³/h or kg/h, flange rating, and area classification. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will return a technical quote with turndown, material, and flange options. Contact Silver Automation Instruments at flow-meter.com.au. Tel +86-25-68650347. WhatsApp +86-25-52155837. WeChat +86 15365082610.
FAQ: Self-Conditioning V-Cone Offshore Flow Meter
What is the minimum upstream straight pipe for a V-cone offshore flow meter? Most installations need 0 to 2 D upstream and 0 to 1 D downstream. If you have heavy swirl from two elbows in different planes, add an extra 2 D.
What turndown can a high-turndown natural gas probe achieve? A single differential pressure transmitter typically gives 10:1. A dual transmitter setup or a high range transmitter can reach 15:1 in natural gas service.
Can the meter handle sour gas? Yes. We supply NACE MR0175 and ISO 15156 compliant materials. Inconel 625 cone elements and super duplex bodies are common for sour offshore gas.
What output signals are available for offshore use? We provide 4-20 mA HART, Modbus RTU, and pulse outputs. ATEX Zone 1 or IECEx Ex d and Ex i transmitter options are available.
What is the typical delivery time? Standard DN25 to DN300 meter bodies ship in 4 to 5 weeks. Large sizes or Inconel 625 wetted parts may take 7 to 8 weeks.
