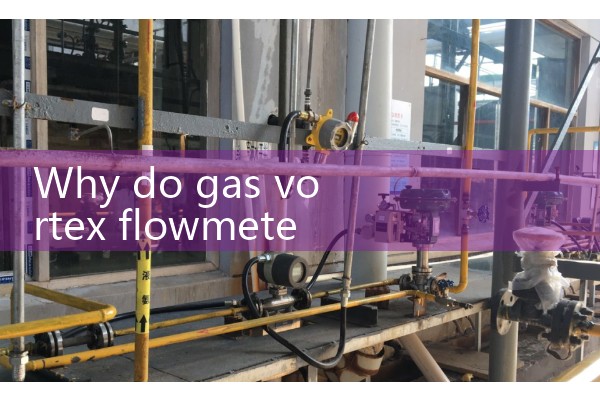

How to perform temperature and pressure compensation during steam vortex flowmeter measurement? During the measurement of steam vortex flowmeter, temperature and pressure compensation is mainly carried out to cope with the changes in steam density with temperature and pressure, ensuring accurate measurement. The specific method is as follows: Generally, pressure and temperature sensors are installed on site, and the pressure, temperature, and flow data are uploaded to the flow integrator for calculation, so as to obtain the standard flow rate. Compensation method: Measuring superheated steam: If either temperature or pressure changes, the density of the steam will change, and the mass flow rate will also change accordingly, so temperature and pressure compensation are required simultaneously. Measuring saturated steam: The density of saturated steam is proportional to temperature or pressure, and knowing either one can determine the density of saturated steam. Therefore, single temperature compensation or single pressure compensation is required. Measurement of gas: The volume flow rate of gas changes with temperature or pressure changes, so temperature and pressure compensation are required simultaneously. Attention: When measuring liquids below 5MPa, only temperature effects are generally considered, and temperature compensation is required for accurate measurement; During general measurement, no compensation is required. Measuring some hydrocarbons (such as crude oil) generally requires temperature and pressure compensation simultaneously. 2. Why do gas vortex flowmeters need temperature and pressure compensation? The reason why gas vortex flowmeters need temperature and pressure compensation is to ensure
1. The necessity of temperature and pressure compensation In gas flow measurement, due to the compressibility of gas, its flow rate is not only related to the input signal of the flowmeter, but also closely related to the density of the gas. And the density of gas is a function of temperature and pressure. Therefore, when the temperature or pressure of a gas changes, its density will also change, leading to deviations in flow measurement results. In order to obtain accurate flow measurement results, temperature and pressure data correction must be performed on the measurement results, that is, temperature and pressure compensation must be carried out.
II. Principle of Temperature and Pressure Compensation The core of temperature and pressure compensation is to establish the corresponding relationship between fluid flow rate, temperature, and pressure through mathematical models or experimental data, and to correct the original reading of the flowmeter based on this.
. The compensation process mainly includes the following steps: data acquisition: real-time collection of fluid temperature and pressure data, which are the basis for subsequent compensation calculations. Model establishment: Based on the physical properties of the fluid, establish a mathematical model between flow rate, temperature, and pressure. This model is usually based on the principles of fluid mechanics, thermodynamic laws and experimental data fitting. Compensation calculation: Substitute the collected temperature and pressure data into the compensation model, calculate the flow deviation caused by temperature and pressure changes, and deduct t
