How Peak Flow Meter Works in Industrial Gas and Liquid Lines
Quick Answer
A peak flow meter captures the highest instantaneous flow rate in a pipeline over a defined sampling window. The instrument converts fluid velocity or mass flow into a readable electrical signal. Silver Automation Instruments supplies industrial peak flow meters for gas, steam, and liquid services with outputs including 4-20 mA HART and pulse.
What an Industrial Peak Flow Meter Actually Does
Most engineers know a standard flow meter reports real time flow. A peak flow meter goes one step further. It records the maximum flow value reached during a shift, a batch, or a full day. This matters a lot in compressed air systems, boiler steam lines, and pump discharge pipes.
Here is the thing. A compressor in a food plant might run at 12 m3/min for hours. Then two packaging machines start at the same time and the flow spikes to 28 m3/min for 40 seconds. A standard totalizer misses the spike. A peak flow meter catches it.
We have seen this on customer sites many times. A dairy processor in Indonesia kept tripping a main breaker every three days. The operators could not explain it. A peak flow meter on the chilled water line showed a spike of 42 kg/s every morning at 6:10 during CIP cycle startup. That data solved the problem in one week.
How Different Flow Meter Technologies Detect Peak Flow
Different meter types use different physical principles to capture peak flow. The choice depends on the fluid, the pipe size, and the required response time. Silver Automation Instruments recommends the following pairings.
Electromagnetic Flow Meters for Peak Water and Wastewater Flow
An electromagnetic flow meter measures conductive liquids using Faraday law. Two coils generate a magnetic field across the pipe. As the liquid flows through the field, it produces a voltage proportional to velocity. The meter reads this voltage continuously and can update the output every 100 ms or faster.
So when a pump starts and the flow jumps from 0 to 250 m3/h in three seconds, the electromagnetic meter tracks the ramp. The transmitter stores the peak value internally. You can read it on the local display or pull it through Modbus RTU.
For mining dewatering in Western Australia, Silver Instruments supplies DN200 electromagnetic flow meters with a built-in peak flow record. The peak value helps site engineers verify that the pump curve matches the actual system. A mismatch often means the impeller is worn or the pipeline has a blockage.
Vortex Flow Meters for Peak Steam and Gas Flow
A vortex flow meter works by inserting a bluff body into the flow stream. The fluid passing the bluff body sheds vortices at a frequency proportional to velocity. A piezoelectric sensor counts these vortices. The transmitter converts the frequency into a flow rate and updates the output rapidly.
Steam lines need peak flow data because boiler load changes are fast. A pharmaceutical plant in Malaysia runs a 4 ton/hour boiler. During autoclave start-up, the steam draw can peak at 6.8 ton/hour for about five minutes. A vortex meter with a DN50 line size and integrated temperature and pressure compensation tracks this peak correctly.
Because vortex meters have no moving parts, they handle sudden flow bursts without mechanical shock. This makes them a practical choice for saturated steam and compressed air applications where peak demand drives pipe sizing.
Coriolis Mass Flow Meters for Peak Flow in Dosing and Batching
Coriolis mass flow meters measure the phase shift between two vibrating tubes. The phase shift is directly proportional to mass flow. Response time can be as fast as 5 ms on some models. That speed is essential for capturing peaks in short duration dosing operations.
A paint manufacturer in Vietnam uses a Coriolis meter on a solvent dosing line. Each batch includes a 3 second solvent flush at 0.8 kg/s. The normal flow is 0.15 kg/s. The peak flow record confirms that every batch received the correct flush volume and that the valve opened fully. If the peak value drops below 0.7 kg/s, the operator knows the solvent filter is starting to clog.
Silver Instruments supplies Coriolis meters from DN01 up to DN150. For peak flow measurements in high viscosity fluids up to 500 cP, these meters provide mass flow, density, and temperature in one device.
Ultrasonic Flow Meters for Peak Flow in Large Pipes
Inline or clamp-on ultrasonic flow meters measure transit time difference between upstream and downstream acoustic signals. They work well on DN50 to DN1200 pipes. The output update rate is usually 1 second or faster.
Water utilities in the Middle East use clamp-on ultrasonic meters to monitor peak flow in distribution mains. A DN600 line in a desalination plant was showing repeated pressure drops. The peak flow data from a clamp-on meter revealed a daily peak of 5200 m3/h at 5:30 PM. The system design value was 4800 m3/h. That 8 percent overshoot explained the pressure drop.
Because clamp-on ultrasonic mete
Oval Gear Flow Meters for Peak Flow in Fuel and Oil Lines
Oval gear flow meters use two rotating oval gears to trap and count fixed volumes of fluid. Each gear rotation corresponds to a precise volume. These meters are mechanical and positive displacement. They track pulse output directly to flow volume with high accuracy.
Marine diesel transfer lines often need peak flow values during bunkering. A ship operator in Singapore used a Silver Instruments oval gear flow meter with a DN25 line size to monitor fuel transfer. The peak flow during the first ten minutes reached 3.2 m3/h before dropping to a steady 2.0 m3/h. That initial surge was causing hose movement. The ship crew now throttles the valve to keep the peak below 2.5 m3/h.
Oval gear meters work well for diesel, lube oil, and heavy fuel oil. Viscosity range covers 1 to 100000 cP. The mechanical counter plus electronic pulse output gives you both local and remote peak flow access.

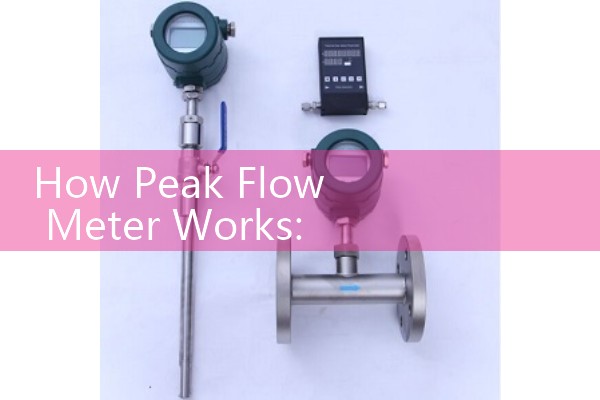

Thermal Mass Flow Meters for Peak Gas Flow
Thermal mass flow meters work by measuring the heat loss from a heated sensor to the flowing gas. The heat loss correlates with mass flow. These meters detect low flow rates and respond quickly to changes.
Biogas digesters in agricultural operations need peak flow values for flare system design. A chicken farm in Thailand produces biogas at 30 Nm3/h average. During digester agitation, the gas release can peak at 75 Nm3/h for 15 minutes. A thermal mass flow meter with a DN50 insertion probe captures this peak reliably. The data helps size the flare and the gas holder.
Practical Tips for Peak Flow Meter Selection
Do not select a peak flow meter based on average flow only. Calculate the maximum possible instantaneous flow first. For pump systems, check the pump curve at minimum discharge head. For compressed air, add all simultaneous air consumers and multiply by a diversity factor. Most engineers skip this part and then wonder why the meter saturates at high output.
Send us your pressure in bar, temperature in deg C, pipe size in DN, and flow range in kg/h or m3/h. We will recommend a meter with the correct turndown ratio and response time. Our sales team replies to these technical data requests within 24 hours.
Another point that matters is the output signal. If your PLC scans at 100 ms intervals, a meter with a 1 second update rate will not catch very short flow spikes. In that case, choose a Coriolis or electromagnetic meter with a fast sampling mode. If you only need a daily peak value for reporting, a vortex or ultrasonic meter with internal data logging is enough.
Silver Automation Instruments has supplied peak flow meters to water plants, food factories, oil terminals, and chemical processors since 2010. Our engineers can help you select a meter for your specific fluid and operating conditions.
Contact Information
Tel: +86-25-68650347
WhatsApp: +86-25-52155837
WeChat: +86 15365082610
FAQ
Q1: What is the difference between a peak flow meter and a standard flow meter?
A standard flow meter shows current flow. A peak flow meter stores the maximum instantaneous flow value recorded over a period you define. Some models also store minimum flow and average flow. This data is useful for troubleshooting pump surges, valve opening events, and compressor start-ups.
Q2: Can a peak flow meter be used for both liquid and gas?
No single flow meter technology works for all fluids. Use electromagnetic meters for conductive liquids like water and wastewater. Use vortex meters for steam and most gases. Use Coriolis meters for custody transfer and dosing where mass flow accuracy matters. Silver Instruments helps you match the meter to the fluid.
Q3: How fast can a peak flow meter respond to a flow spike?
Response time depends on the technology. Coriolis meters can update in 5 to 10 ms. Electromagnetic meters typically update in 100 to 500 ms. Vortex meters are in the 250 to 1000 ms range. Ultrasonic clamp-on meters usually update every 1 second. Tell us your required response time when you request a quote.
Q4: Can I install a peak flow meter in a short straight pipe run?
Some technologies tolerate short straight runs better than others. Electromagnetic meters need about 5 DN upstream and 2 DN downstream. Vortex meters need 15 to 20 DN upstream. Coriolis meters need no straight run at all. If your pipe layout is tight, choose a Coriolis meter for liquids or a thermal mass meter for gas.
Q5: What is the typical price range for an industrial peak flow meter?
Price depends on line size, material, pressure rating, and output options. A DN25 oval gear meter for diesel may cost around 400 to 700 USD. A DN100 electromagnetic meter with Modbus starts around 900 USD. A DN50 Coriolis meter starts around 2800 USD. Send us your fluid, pipe size, pressure, and temperature for a firm quote.
