Krohne Flow Meter Wiring Diagram Blueprint: Connecting IFC Transmitters to PLC Control Loops
Quick Answer: For a Krohne IFC transmitter to PLC analog input, wire terminal A+ to PLC AI+ and terminal A- to PLC AI- for a powered 4-20 mA loop. If the PLC input card is passive, add a separate 24 V DC supply in series with the loop. Check the IFC model number first, because IFC 050, IFC 100, and IFC 300 terminal labels change.
Why Do Terminal Layouts Differ Between Krohne IFC Models?
A common mistake is using an IFC 050 wiring diagram for an IFC 100 transmitter. The IFC 050 is a compact converter for basic flow measurement. The IFC 100 and IFC 300 add HART, Modbus, and pulse outputs with different terminal blocks. Always check the serial number plate and the manual for the exact model. We have seen a water plant in Vietnam lose two hours because the electrician followed a generic wiring note for the wrong IFC model.
What Are Typical Terminal Assignments for Krohne IFC Transmitters?
For most IFC transmitters, the power supply uses L, N, and PE. The analog output often sits on terminals A+ and A-. Some IFC 100 models label the current output as I+ and I-. The pulse or frequency output can be terminals C and D. RS485 Modbus uses B1 and B2. Do not assume the same labels across all models. On an IFC 300, the HART signal rides on the 4-20 mA pair. That means you do not need extra signal wires for HART configuration.
How Do You Wire a 4-20 mA Analog Loop to a PLC Input Card?
Use shielded twisted pair cable. A cross section from 0.75 mm2 to 1.5 mm2 is enough for most runs. Connect IFC A+ to PLC AI+. Connect IFC A- to PLC AI-. Connect the shield to ground only at the PLC cabinet. If the PLC input provides loop power, the transmitter works as a two wire device. If the PLC input is passive, add a 24 V DC supply. The positive of the 24 V supply goes to IFC A+. The IFC A- goes to PLC AI+. The PLC AI- returns to the negative of the 24 V supply. This series loop gives the PLC a 4 mA signal at zero flow and 20 mA at full scale.
How Do You Wire Pulse and Frequency Output to a PLC Counter?
For total flow, use the pulse output. Krohne IFC transmitters often have an open collector pulse output or a passive frequency signal. Wire the pulse terminal to a PLC digital input. Add a pull-up resistor if the PLC input does not have one. Set the pulse value in the transmitter, for example 1 pulse per 1 liter or 1 pulse per 10 liters. A paint manufacturer in Indonesia asked us to set the pulse output at 100 pulses per kg for a batch filling line. That setup worked with a 12 V PLC input card and a 1 kohm pull-up resistor.
How Do You Wire RS485 Modbus for IFC 300 and IFC 100?
The IFC 300 supports Modbus RTU on terminals B1 and B2. Use 2 core shielded cable for RS485. Connect B1 to B1 on the PLC, B2 to B2. Daisy chain multiple devices. Install one 120 ohm termination resistor at the last device and at the first device. Set the baud rate to 19200, parity even, stop bit 1. The flow rate register is often 40001 and the totalizer is 40002. Check the IFC 300 register map because the data format can be float or integer.
What Grounding Rules Prevent Signal Drift?
Ground lo
What Can You Check Before Calling Support?
In practice, use a 4-20 mA loop calibrator to simulate flow at the PLC. Inject 4 mA and check the PLC value shows zero. Inject 20 mA and check full scale. If the PLC value does not match, verify the scaling in the PLC analog input card. For a PLC range of 0 kg/h to 5000 kg/h, 4 mA equals 0 and 20 mA equals 5000. Also check the transmitter display for flow velocity. If the pipe is empty or the liquid conductivity is below 20 uS/cm, an electromagnetic flow meter may read zero. We often ask customers to send their conductivity, pipe material, and liner type before wiring up a replacement unit.
Where Silver Instruments Fits In

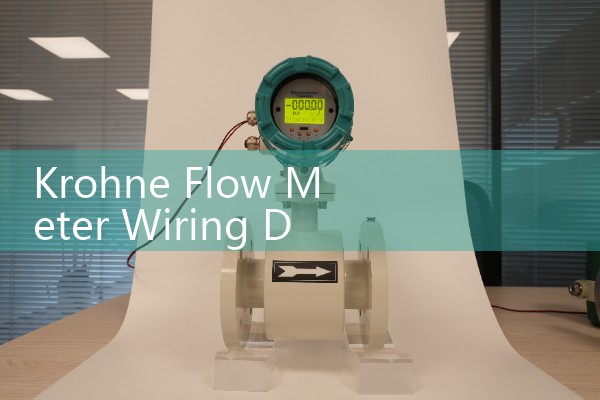

Silver Automation Instruments offers electromagnetic flow meters with IFC style terminal wiring, DN15 to DN2000, PTFE or hard rubber liner, 316L or Hastelloy electrodes, 4-20 mA HART, pulse output, and RS485 Modbus. The Silver Instruments SMF 200 series works as a drop-in replacement for many Krohne IFC loop configurations. We ship to Southeast Asia, Oceania, Latin America, and the Middle East. A water treatment contractor in Malaysia replaced 14 old Krohne IFC 050 meters with our SMF 200 units and kept the same PLC wiring. The project saved two days of panel rework because the terminal labels matched the old layout.
Send us your pipe size in DN, flow range in m3/h, pressure in bar, and temperature in °C. We will return a wiring pinout and a quote for the correct Silver Instruments flow meter. Call Silver Automation Instruments at +86-25-68650347 or WhatsApp +86-25-52155837. WeChat: +86 15365082610. You can also visit flow-meter.com.au for product drawings.
FAQ
Can I use a Krohne IFC 050 wiring diagram for an IFC 300? No. The terminal labels are not the same. Always use the manual for the exact model number from the transmitter nameplate.
What is the most common reason for a 4-20 mA signal stuck at 2.5 mA or 22 mA? Wrong loop wiring or a passive PLC input with no external 24 V DC supply. Check the input card type first.
Do I need HART for normal flow measurement? No. You can run 4-20 mA without HART. HART only helps with remote configuration and diagnostics.
How do I wire the pulse output to a PLC? Use a PLC digital input with a pull-up resistor. Set the pulse scale in the transmitter and verify the counter value against a known flow volume.
What information should I send to get a replacement flow meter quote? Send pipe diameter in DN, flow range in m3/h, pressure in bar, temperature in °C, and the PLC input card type. Contact Silver Automation Instruments at +86-25-68650347.
