Oil Flow Meter 10 bar: Cost-Effective Sizing for Low-Pressure Utility Systems
Quick Answer: A 10 bar oil flow meter works reliably for low-pressure lube oil, fuel oil, and hydraulic oil transfer lines with PN10 flanges. Engineers can skip expensive high-pressure models and choose a positive displacement or turbine meter rated for 10 bar. Silver Instruments offers pre-configured oval gear and turbine flow meters for 10 bar oil service with 4-20 mA output and local display, ready for field install.
Most utility oil systems in small to mid-size plants run between 4 bar and 8 bar. A flow meter with a 10 bar pressure rating gives enough safety margin without overspending on PN16 or PN40 bodies. We see this often in Southeast Asia, the Middle East, and Latin America where a central lube skid feeds multiple points. The line pressure stays low, and the oil is clean enough for an oval gear meter.
An oval gear flow meter handles mineral oils, diesel, light fuel oil, and even some biofuels up to 50 cSt without losing accuracy. Our model OG-L-10, built in brass or stainless steel, measures from 0.5 L/min to 120 L/min at ±0.5% of reading. It ships standard with a reed switch pulse output or a 4-20 mA transmitter. The body is rated PN16, but we test every unit to 10 bar air and 15 bar hydro. Engineers can install it directly in a 1/2 inch or 3/4 inch line.
For higher flow rates, a turbine flow meter is often the better pick. Our TW-L turbine series covers 2 L/min up to 400 L/min in a compact inline design. It uses a 316L rotor and tungsten carbide bearings for long life with hydraulic oil or transformer oil. The standard pressure rating is 10 bar, and the signal is a frequency pulse easy to connect to a PLC or a local display. Many customers in the marine industry use these on ship service fuel oil lines where pressure rarely exceeds 6 bar.
Sizing a 10 bar oil meter starts with three numbers.
First, the pipe size. In low-pressure oil utility piping, we see DN15, DN20, and DN25 most often. A 1/2 inch (DN15) oval gear meter covers 0.5 to 30 L/min. That fits a single burner fuel supply or a small hydraulic power unit. For a main lube oil header at 60 L/min, a DN25 turbine meter is a better match. Second, the oil viscosity. Positive displacement meters like oval gear or helical gear types are almost immune to viscosity changes. Turbine meters need a minimum Reynolds number, so very thick oil (above 80 cSt) can cause a slow response at low flow. We always ask for the oil type and operating temperature. Third, the required output. A simple local batch control works with a reed switch pulse. For remote monitoring, the HART protocol over 4-20 mA is a practical choice on budget.
Here is a field example. A lubricant blending plant in Vietnam needed to meter 40 L/min of base oil at 5 bar into a mixing tank. The pipe was 1 inch (DN25) and the oil viscosity was 32 cSt at 40 °C. We supplied an OG-L-25 oval gear meter with a pre-amplified NPN pulse output to their PLC. The meter body was rated for 10 bar and the wetted parts were aluminum with PTFE gears. Installation took two hours, and the repeatability was better than 0.2%. No zero drift over six months.
Most engineers skip this part, but it matters.
A 10 bar rating looks robust, but pressure spikes can still damage a meter. In pumping systems with positive displacement pumps, install a pulsation dampener or at least a flexible hose section before the meter. Air pockets also cause over-range becaus

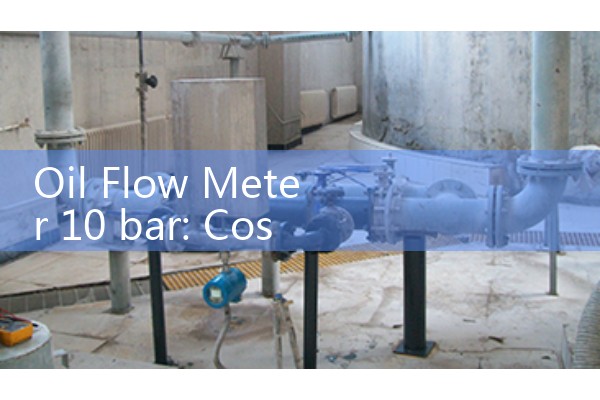

_600x400.jpg)
Temperature plays a hidden role. Even at 10 bar, oil expands and contracts. A meter calibrated at 20 °C will read a volume shift at 60 °C. Our oval gear meters can include a PT100 resistance thermometer in the body. The transmitter then uses the temperature signal to compute mass flow or correct to base volume. This is particularly useful in fuel oil delivery where custody transfer is required. Silver Instruments pre-configures the compensation algorithm in our SIA-100 flow computer. We ship the complete package with a factory calibration certificate traceable to ISO 17025.
Frequently Asked Questions
Can I use a 10 bar oil flow meter for diesel fuel? Yes. Diesel is a thin mineral oil with viscosity around 3 cSt. An oval gear meter works fine, but pay attention to the minimum flow rate. If the pipe empties, the meter can run dry for short periods. We recommend a turbine meter for continuous diesel flow above 10 L/min. Both types are available with a 10 bar body from Silver Instruments.
What is the accuracy of a 10 bar oval gear meter? Standard accuracy is ±0.5% of reading for flow rates between 20% and 100% of full scale. With a high-resolution encoder, ±0.2% is achievable on request. The accuracy holds over a wide viscosity range, which is a clear advantage over turbine meters. We include a 5-point calibration sheet with every meter.
Do I need a straight pipe run for an oval gear meter? No, oval gear meters do not require upstream or downstream straight pipe. Flow profile distortions do not affect the positive displacement principle. That saves space and installation cost in tight oil skids.
How do I know if my oil is clean enough for a 10 bar flow meter? A 100-mesh strainer (approx. 150 microns) before the meter is good practice. Oval gear meters tolerate small soft particles but not grit. If you have heavy fuel oil or waste oil with sludge, a helical screw meter is more forgiving. Send us photos of your oil and we can help with the selection.
What output options exist for a 10 bar oil flow meter? The basic version provides a reed switch or NPN pulse. This is enough for a batch controller or a panel meter. For industry standard 4-20 mA with HART, we add a transmitter head. We also offer Modbus RTU over RS485 for direct PLC integration. The transmitter loop power comes from the same two wires, so the wiring is simple.
At Silver Automation Instruments, we keep 10 bar oil flow meters in stock with DN15 and DN25 connections. We ship from Nanjing, China to Southeast Asia, Australia, the Middle East, Africa, and Latin America within 5 working days. Every meter includes a pressure test report and a calibration certificate. You can email [email protected] or call +86-25-68650347. We accept orders via WhatsApp at +86-25-52155837 and WeChat at +86 15365082610.
Send us your oil type, operating pressure (bar), temperature (°C), pipe size (DN), and the required flow range. Our team will prepare a data sheet and a price quotation the same day.
