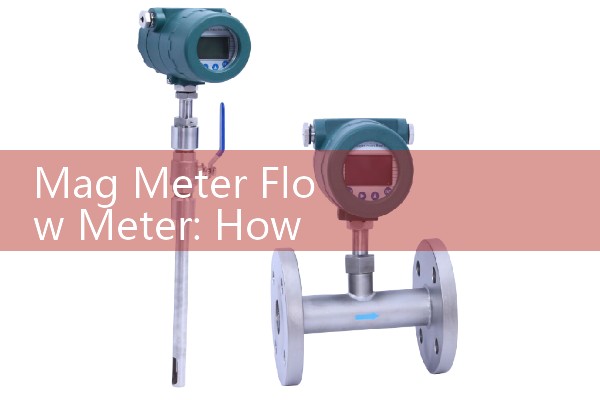

Mag Meter Flow Meter: How Electromagnetic Sensors Measure Fluids
Quick Answer: A mag meter flow meter measures flow by applying a magnetic field to a conductive liquid. Two electrodes pick up a tiny voltage proportional to flow velocity. No moving parts means no pressure drop, and accuracy stays around ±0.2 % of reading on most Silver Instruments models. This makes them the default choice for water, wastewater, chemicals, and any slurry with >5 µS/cm minimum conductivity.
Why Mag Meters Work Only on Conductive Fluids
Faraday’s Law of electromagnetic induction is the backbone of every electromagnetic flow sensor. A pair of field coils generates a steady or pulsed magnetic field across the pipe section. When a conductive liquid moves through that field, charged ions in the fluid create a voltage. Two small electrodes flush with the pipe wall capture that signal. The faster the flow, the higher the voltage.
This principle sets a hard boundary. The fluid must have a minimum electrical conductivity. Silver Instruments standard mag meters need at least 5 µS/cm. Most water-based liquids pass easily. Tap water, river water, seawater, and treated effluent sit well above 50 µS/cm. But deionized water, oils, hydrocarbons, and most solvents fall below the threshold. For those, we point customers to oval gear flow meters or Coriolis mass flow meters instead.
A sugar refinery in Thailand tested this last dry season. Their syrup conductivity dropped below 4 µS/cm on one batch. The mag meter signal became unstable, so they switched to a Coriolis meter for that line. The lesson: always check your fluid’s conductivity data sheet first.
Liner and Electrode Materials Decide the Application
Engineers often focus on accuracy specs. But the material pair of liner and electrode matters more for real service life. A wrong choice can eat through a liner in three months. We have seen it on a wastewater plant in Peru where hypochlorite dosing upstream attacked natural rubber liners.
Silver Instruments offers PTFE liner for aggressive acids and caustics up to 150 °C. Hard rubber and soft rubber liners work well for abrasive mining slurries, especially with ceramic electrodes. For seawater desalination plants, we recommend Hastelloy C electrodes and PTFE or ebonite liner. A customer in Oman runs Silver Instruments DN200 mag meters on brine lines at 45 °C with Hastelloy C electrodes for two years now with no signal drift.
Stainless steel 316L electrodes cover 80 % of municipal water and light chemical applications. For food-grade lines, we supply sanitary tri-clamp mag meters with PFA liners and 316L electrodes, CIP-compatible up to 130 °C.
Installation Rules Engineers Ignore Too Often
Every mag meter manual calls for a straight pipe run. In practice, pump outlets and elbows leave almost no room. Silver Instruments mag meters with an integrated grounding ring and empty pipe detection function can handle up to 0D straight run on the inlet side. The reading stays stable because the magnetic field profile is designed to compensate for disturbed velocity profiles. But we always tell customers: if you have even 3D upstream and 1D downstream, use it. The accuracy will thank you.
Grounding is another field trap. Without a proper ground connection, stray currents couple into the measuring circuit. In plastic or lined pipes, a grounding ring or groundin
Key Specs to Send Us for Quotation
No two installations are the same. To get a firm price and delivery time, send us these five parameters: fluid name and conductivity, pipe size (DN15 to DN2000 available), operating pressure in bar, fluid temperature in °C, and required output signal (4-20 mA HART pulse RS485 Modbus). Adding the flow range in m³/h or L/min lets us check the velocity is within 0.3 – 10 m/s, the sweet spot for electromagnetic measurement.
For hazardous areas, Silver Instruments mag meters come with ATEX Zone 1 and IECEx certification. An oil terminal in Nigeria recently ordered 12 units of DN80 mag meters with Ex d ia certification for diesel-water interface detection on a tanker loading skid. They needed the conductivity threshold adjusted to 20 µS/cm to distinguish water from fuel. We factory-set the limit and shipped within four weeks.
Outputs and Remote Diagnostics
All Silver Instruments electromagnetic flow meters include a standard 4-20 mA analog output, pulse output for totalization, and RS485 Modbus RTU. HART communication is an option. The electronics convert the electrode voltage to a digital flow value, then output it through the selected channels. A built-in data logger stores 2000 records in non-volatile memory.
Many customers in Australia and Southeast Asia use the RS485 output to feed flow data into a Silver Instruments paperless recorder or directly to a PLC. The Modbus map is open and documented; we give it to integrators without extra license fees.
Empty pipe detection is standard on remote-type sensors. This prevents pumps from running dry if the supply tank empties unexpectedly. A water treatment contractor in Malaysia uses this function on all their raw water intake mag meters.
FAQ About Electromagnetic Flow Meters
Can a mag meter measure gas or steam?
No. Gas and steam have near-zero conductivity. Use a vortex flow meter or thermal mass flow meter instead.
Does slurry or pulp with solids affect accuracy?
It can, if solids cause electrode coating. Silver Instruments high-frequency excitation mode reduces this effect. For slurry with >30 % solids, we suggest ceramic electrodes and a straight vertical pipe run.
What is the minimum pipe size you offer?
DN15 (½ inch) for low-flow chemical dosing. Maximum is DN2000, commonly used in large water transmission mains.
Do I need an in-situ calibration rig?
No. Each mag meter leaves our Nanjing factory with a wet calibration certificate traceable to national standards. Accuracy is verified at three flow points: 0.3 m/s, 1 m/s, and 10 m/s.
How long does delivery take for a custom-configured mag meter?
Standard mag meters ship in 7 business days. Custom liner, electrode, or Ex certification requires 3-4 weeks. Air freight to Doha, São Paulo, or Lagos takes 4-6 working days.
Send your pressure, temperature, pipe size, and flow range to [email protected]. Tel: +86-135-1213-1526. WhatsApp: 86-135-12131526. WeChat: +86 13512131526. For technical datasheets, visit flow-meter.com.au.
